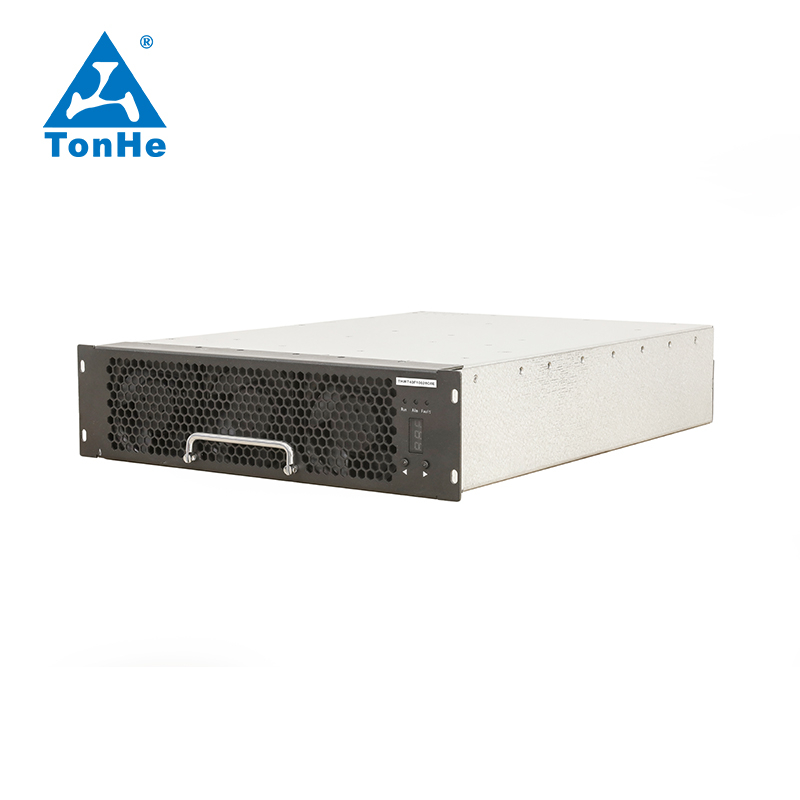

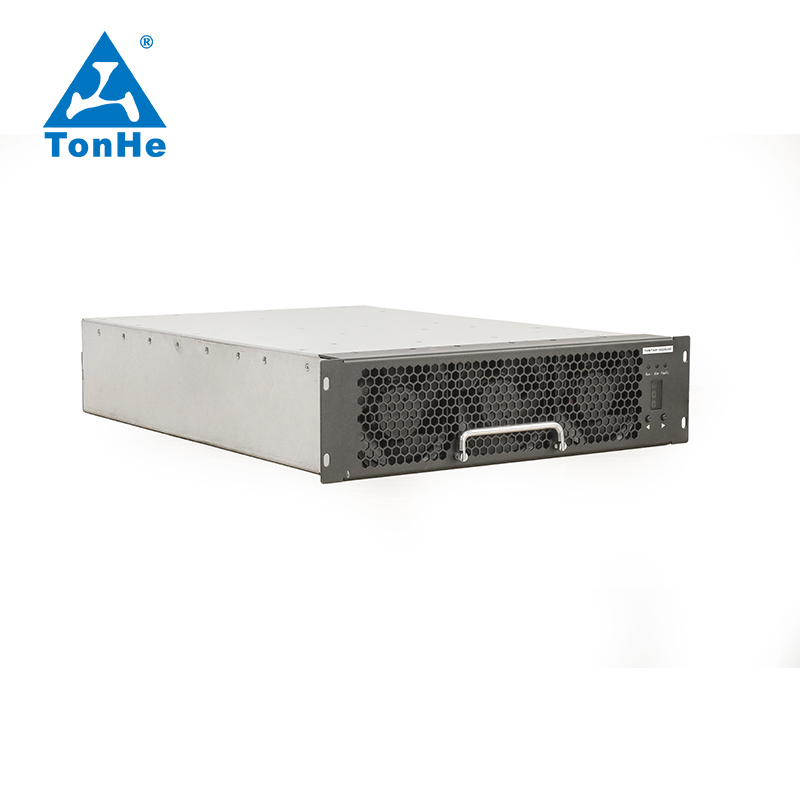

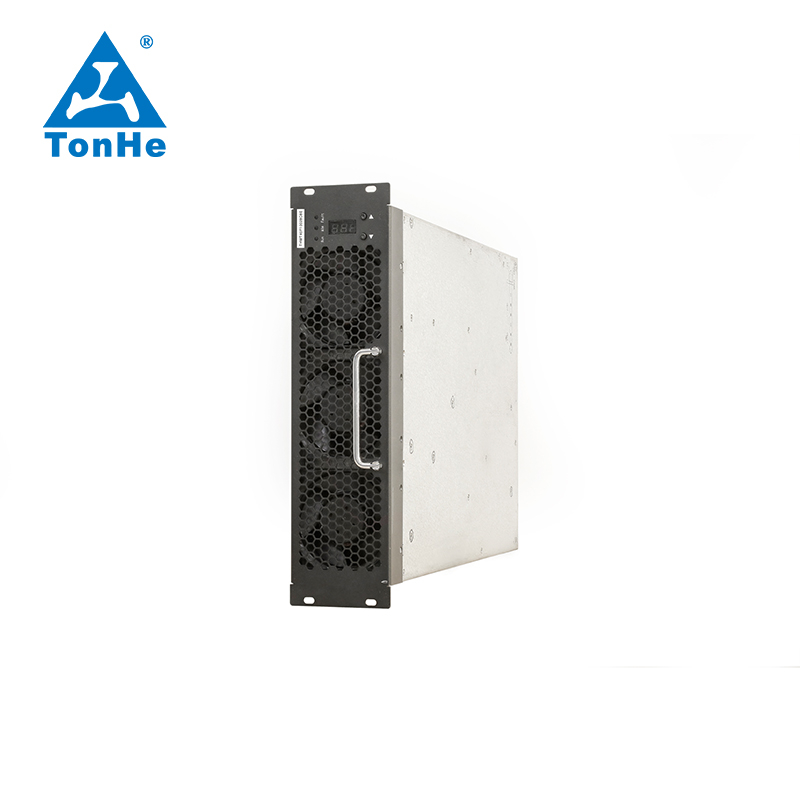

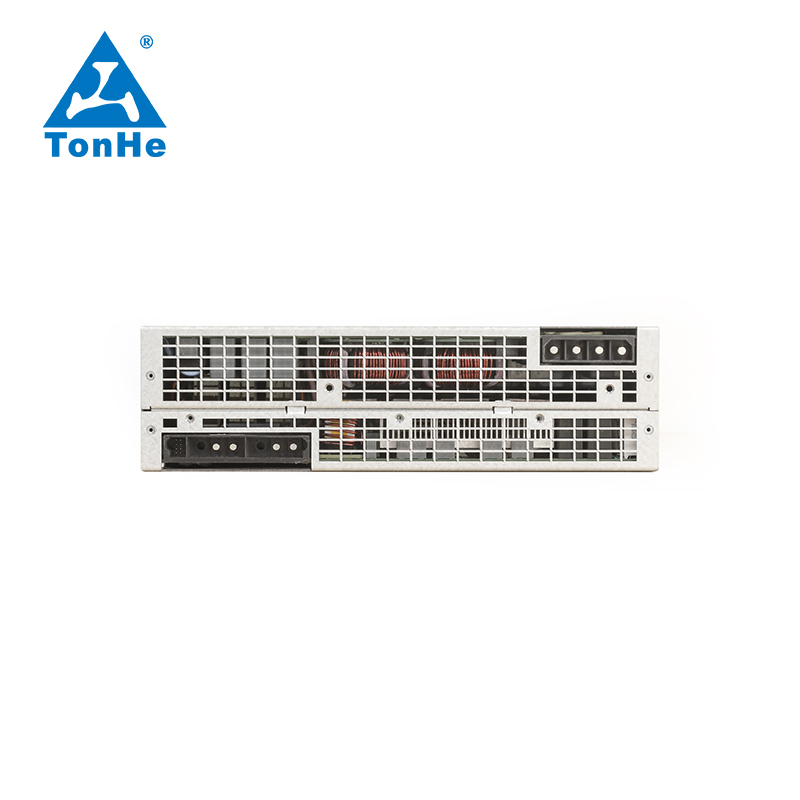

THWT30F10025C8EUR is a power module developed by Tonhe Electronics for charging pile, which meets UL standard, high efficiency and high power density.
It supports 432Vac ~ 528Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 30KW, and the default constant output power range is 250Vdc ~ 1000Vdc.
The monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus.
Based on the communication, the functions of working parameter setting, operating parameter collection and working state control of the charging module can be realized.
| Quantity: | |
|---|---|
THWT30F10025C8EUR
Tonhe
THWT30F10025C8EUR is a power module developed by Tonhe Electronics for charging pile, which meets UL standard, high efficiency and high power density.
It supports 432Vac ~ 528Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 30KW, and the default constant output power range is 250Vdc ~ 1000Vdc.
The monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus.
Based on the communication, the functions of working parameter setting, operating parameter collection and working state control of the charging module can be realized.
Wide output constant power range: 280-1000VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -30℃~+75℃
High Conversion Efficiency: peak efficiency ≥ 96%

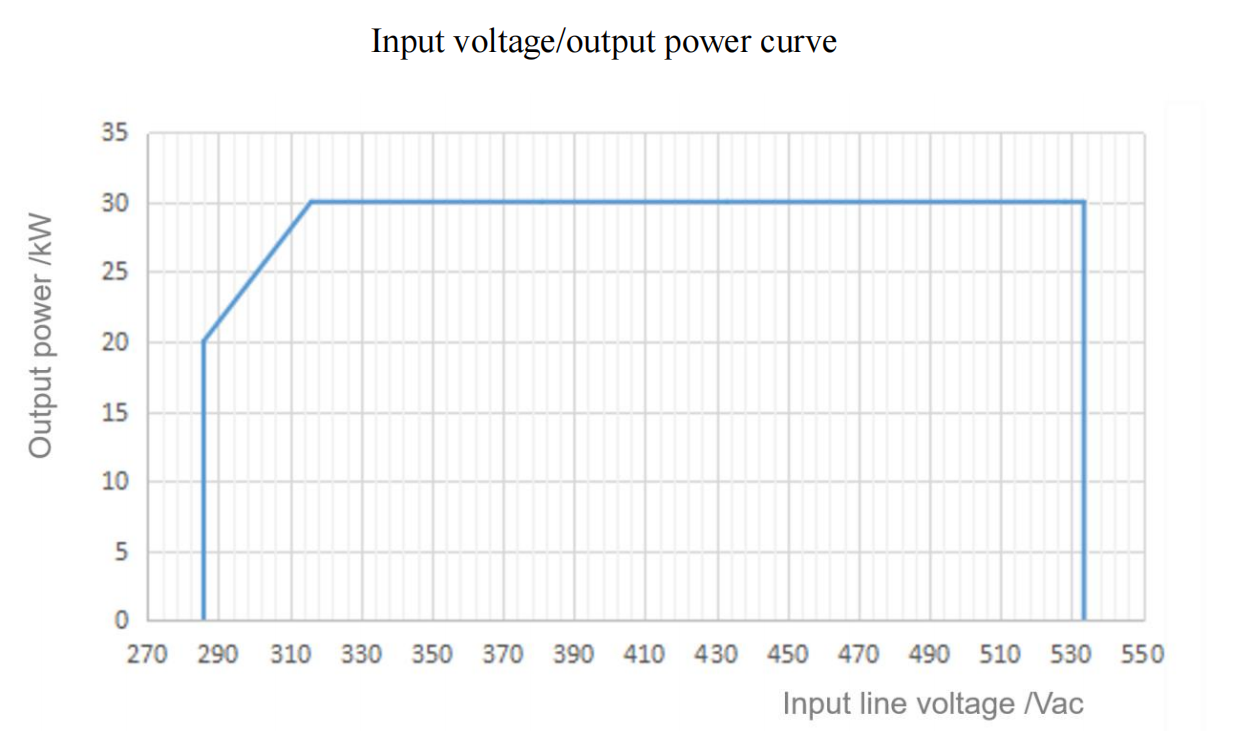

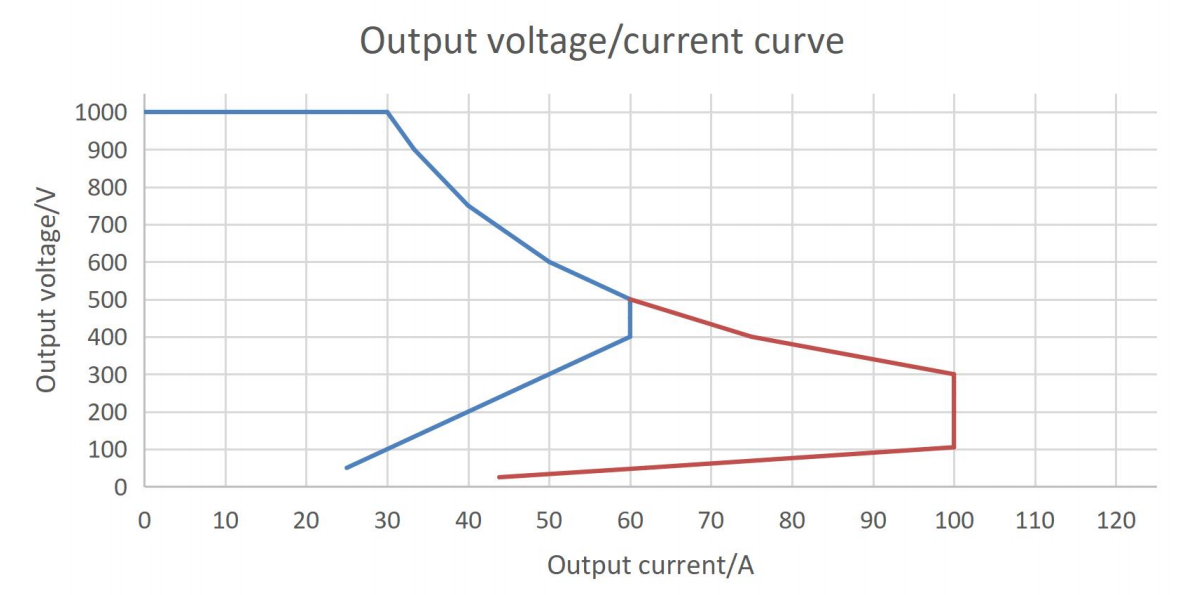

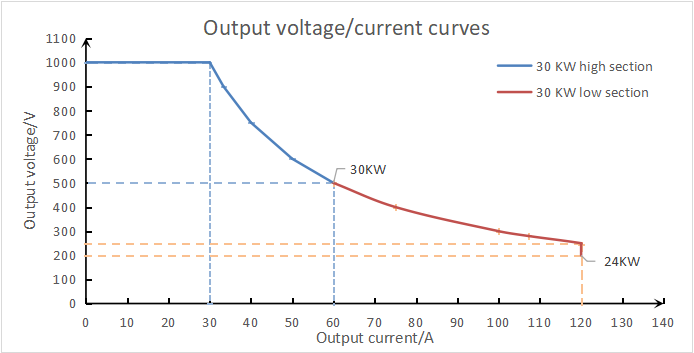

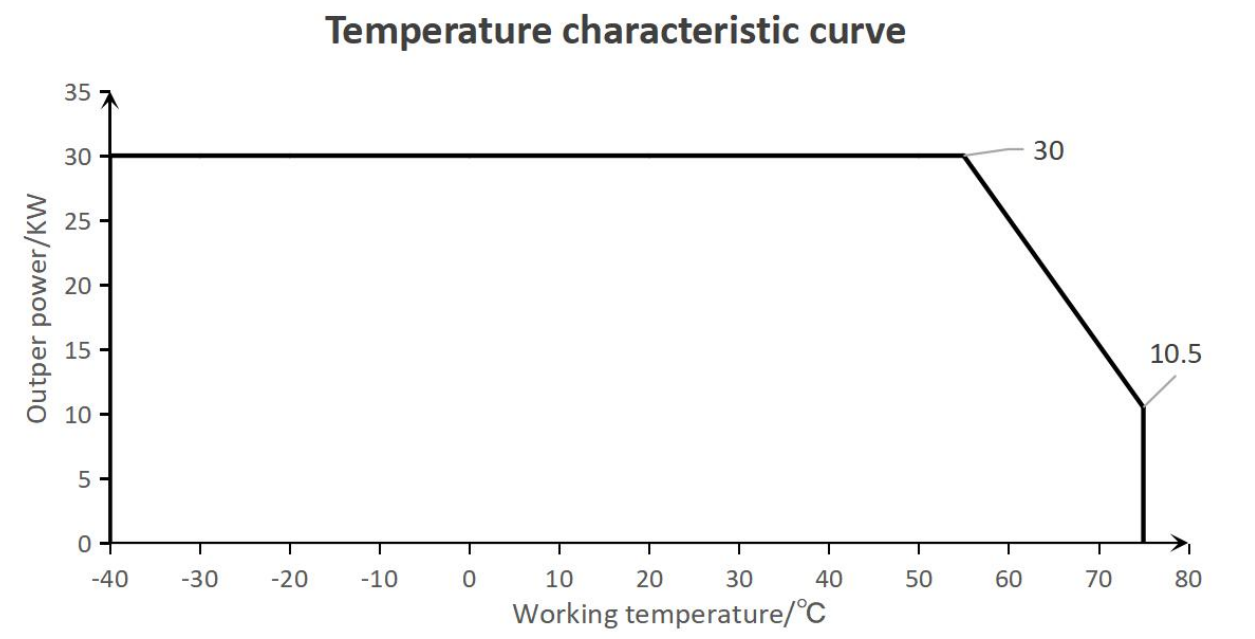

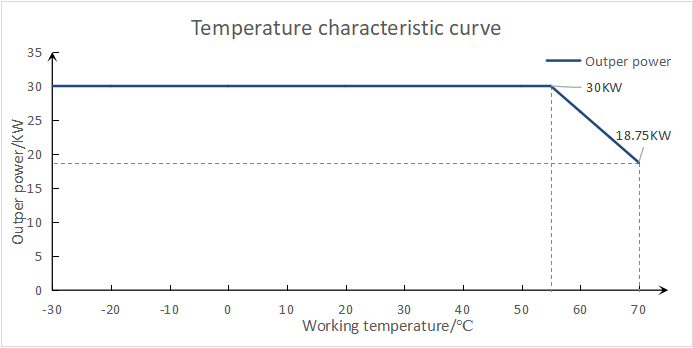

 |  |  |
Model No. | THWT30F10025C8EUR | |
AC input | Input voltage | Rated voltage 480VAC, three phase no center line，operating range 432-528VAC |
Input frequency | 60Hz | |
Input power factor | ≥0.99 | |
Input overvoltage protection | 531VAC～543VAC | |
Input undervoltage protection | 323VAC～335VAC | |
DC output | Rated output power | 30kW |
Output voltage range | 200~1000VDC | |
Output current range | 0.5~120A | |
Output constant power range | When output voltage is 250-1000VDC, constant 30kW will output. | |
Peak efficiency | ≥96% | |
Soft start time | ≤3s | |
Short circuit protection | Self-rollback protection | |
Voltage regulation accuracy | ≤±0.5 | |
THD | ≤5% | |
Current regulation accuracy | ≤±1% | |
Current sharing imbalance | ≤±5% | |
Operating environment | Working temperature | -30℃~+70℃ |
Relative humidity | ≤95% no condensation | |
Altitude | ≤2000m, derating above 2000m | |
Product Features | Cooling method | Fan cooling |
Standby power consumption | ＜10W | |
Communication Protocol | CAN | |
Address setting | Digital screen display, keys operation | |
Module dimension (without handle) | 437.5*300*84mm(L*W*H) | |
Weight | ≤20kg | |
MTBF | 500000 hours | |
