Tonhe Technology High power modules engineered for fast and ultra-fast EV charging applications, featuring high efficiency, stable output, intelligent thermal management, and flexible system integration.
Request Quote

80kW EV Charging Module with 97.5 Peak Efficiency

Peak efficiency ≥97.5%nHigh protection, with double-sided full potting processnIntegrated magnetic design, downsizes winding componentsnWide operating temperature range: -40℃ ~ +75℃

Request Quote

40kW UL-certified Low Noise 60dB Full Gel-filling EV Charging Power Module

THWT40F10030C9EUR is a high efficiency, high power density DC charging module developed byTonhe for the American market, which complies with UL2202 standards.

Request Quote

30kW Constant Power Module Rectifier in EV Charging Station

TH30F10030C8E-WT is a high-efficiency, high-power-density AC/DC module specially developed by Tonhe Company for EV charging Stations. This product is a three-phase four-wire system (three-phase + PE) input, supports 285VAC-475VAC voltage input, and the maximum power is 30KW (the maximum constant power range is 300~1000VDC). The charging module communicates with the main monitor through the CAN bus, realizes the parameter setting of the charging module through the communication with the main monitor, collects the operating parameters of the charging module, and controls the working state of the charging module

Request Quote

30kW Low Noise Ev Charger DC Power Module

TH30F10030C9E-WT is a low-noise, low-power, high-efficiency, high-power density, ultra-wide constant power range AC/DC module developed by Tonhe for charging piles. nThis product supports 285VAC-475VAC (line voltage) three-phase four-wire system (three-phase +PE) input, rated output power 30KW, constant power range 300-1000VDC, and the high temperature within 50℃ without derating the full output range. nThe charging module communicates with the main monitor through the CAN bus to realize the parameter setting of the charging module, collect the operating parameters of the charging module, and control the working state of the charging module.

Request Quote

UL Certified 40kW EV DC Charging Module

THWT40F10028C8EUR is a power module developed by Tonhe Electronics for charging pile, which meets UL standard, high efficiency and high power density. nnIt supports 432Vac ~ 528Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 40KW, and the default constant output power range is 280Vdc ~ 1000Vdc. The monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus. nnBased on the communication, the functions of working parameter setting, operating parameter collection and working state control of the charging module can be realized.

Request Quote

40kW Liquid Cooling IP65 Power Module for EV Charger

TH40F10030C8L-WT is a liquid cooled power module with high efficiency and high power density developed by Tonhe Technology for charging pile. nnIt supports 323Vac~460Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 40kW, and the default constant output power range is 300Vdc ~ 1000Vdc. nnThe monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus. nnBased on the communication, the functions of working parameter setting, operating parameter collection and working state control of the charging module can be realized.

Request Quote

20kW 100~120V DC Charging Power Module in EV Charging Pile

TH20F1210C8E-WT charging module is a high efficiency, high power density, ultra-wide input range, high current, low voltage AC/DC module developed for electric vehicle charging. This product supports 260Vac~520Vac (line voltage) three-phase four-wire system (three-phase +PE) input, rated output power 20kW, constant power range 100~120Vdc. The module adopts intelligent air cooling heat dissipation. The charging module communicates with the main monitor through the CAN bus to realize the parameter setting of the charging module and control the working state of the charging module.

Request Quote

CE-certified 40kW High efficiency 97.2 EV Power Module

THWT40F10030C9E is high efficiency, high power density DC charging module developed by Tonhefor European market. The module accords with lEC61851 and lEC60664 and other relative stan.dards, could meets EMC request of Class B.

Request Quote

Taihang Series 40kW Ultra-high Efficiency Low-noise EV Charging Power Module

TH40F10030C9E-WT is a high efficiency and high power density power module specially developed for charging piles by Tonhe Technology.nIt supports 270Vac ~ 490Vac three-phase four-wire system (three-phase +PE) input, the maximum power is 40kW, and the default output constant power range is 300Vdc ~ 1000Vdc.nThe monitoring unit/control unit of the charging system CAN communicate with the charging module through the CAN bus, and can realize the functions of the working parameter setting, operation parameter collection and working state control of the charging module based on the communication.

Product Advantages

High efficiency, high reliability and intelligent design.
Tonhe high power modules deliver stable and efficient performance for every charging application.

Higher Efficiency, Lower Energy Loss

·   Peak efficiency >97.5%

·   Ultra-low standby power consumption

·   Lower operating cost for the whole lifecycle

·   Wide output voltage range

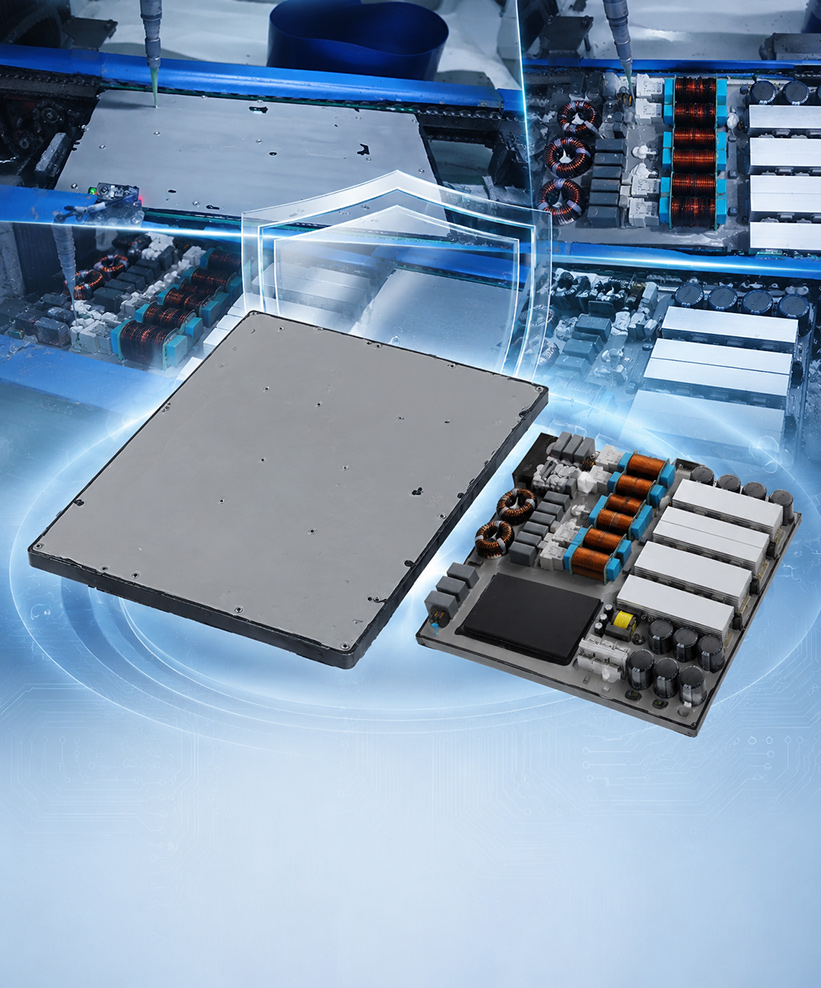

Full Gel-filling Protection, Industrial Reliability

·   Double-sides full gel-filling for PCBs

·   IP65 protection, adapt to harsh environments

·   High reliability,long service life

·   Suitable for harsh environments

High Power Density, Easy Integration

·   20-80kW wide power range

·   Standardized design for fast deployment

·   Compact size, high power density

·  Adaptable to various DC charging platforms

Q ：What is a high power module for EV charging?

A high power module is a power conversion unit designed to provide stable and efficient DC power for electric vehicle charging systems. Tonhe Technology offers high power modules from 20kW to 80kW for DC fast charging and ultra-fast charging applications.

Q : What is an electric vehicle charging module?

An electric vehicle charging module is the core power conversion component inside a DC EV charger. It converts electrical power into the required DC output for charging electric vehicles while helping ensure high efficiency, stable output, and reliable operation.

Q : What is a DC charging module used for?

A DC charging module is used in DC fast charging and ultra-fast charging equipment to provide regulated DC power directly to electric vehicles. Multiple modules can also be integrated into one charging system to achieve higher overall charging power.

Q : What high power module ratings does Tonhe Technology offer?

Tonhe Technology provides high power module solutions covering 20kW, 30kW, 40kW, 50kW, 60kW, and 80kW. This range allows EV charger manufacturers and system integrators to select a suitable module according to their required output power.

Q : What is the difference between a high power module and a standard charging module?

A high power module is designed to handle higher power output while maintaining efficient power conversion and thermal performance. It is particularly suitable for high-power DC charging systems, charging hubs, highway charging stations, and other applications requiring fast or ultra-fast EV charging.

Q ：Can an electric vehicle charging module be used in DC fast charging stations?

Yes. Tonhe electric vehicle charging modules are designed for integration into DC fast charging and ultra-fast charging stations. Depending on the charger architecture, multiple modules can be combined to increase the total charging capacity.

Q ：How does thermal management improve a DC charging module?

Effective thermal management helps control the operating temperature of a DC charging module during high-load and continuous charging. This supports stable power output, improves operational reliability, and helps extend the service life of the charging system.

Q ：Can Tonhe high power modules be integrated into customized EV chargers?

Yes. Tonhe high power modules are designed for flexible system integration. They can be integrated with DC charger controllers, Charging Management Systems (CMS), Power Management Systems (PMS), communication devices, and other components to develop customized EV charging solutions.

Q ：What applications can use Tonhe electric vehicle charging modules?

Tonhe electric vehicle charging modules can be used in public DC fast charging stations, highway charging stations, ultra-fast charging hubs, fleet charging systems, commercial charging facilities, and other EV charging infrastructure. They are suitable for charging equipment manufacturers, charging operators, and system integrators.

Q ：How do I choose the right DC charging module for my project?

The right DC charging module depends on the required output power, system voltage, cooling method, operating environment, and charger architecture. Tonhe Technology offers 20kW–80kW module options and can provide technical support to help customers select the appropriate electric vehicle charging module for their application.
