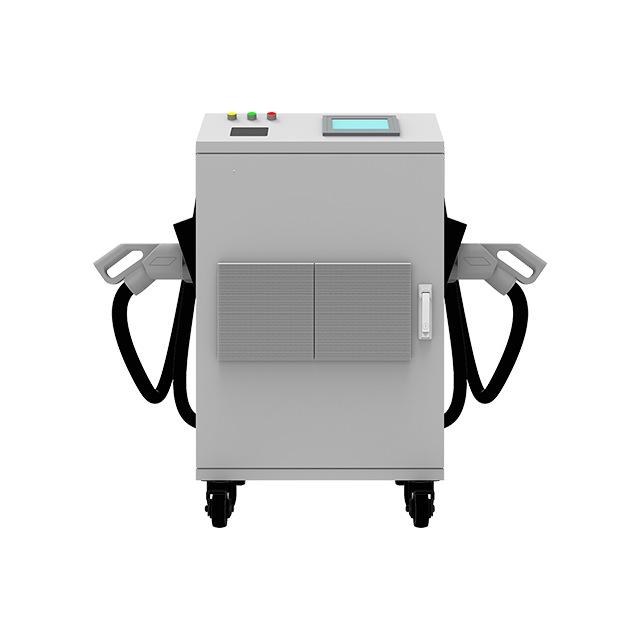

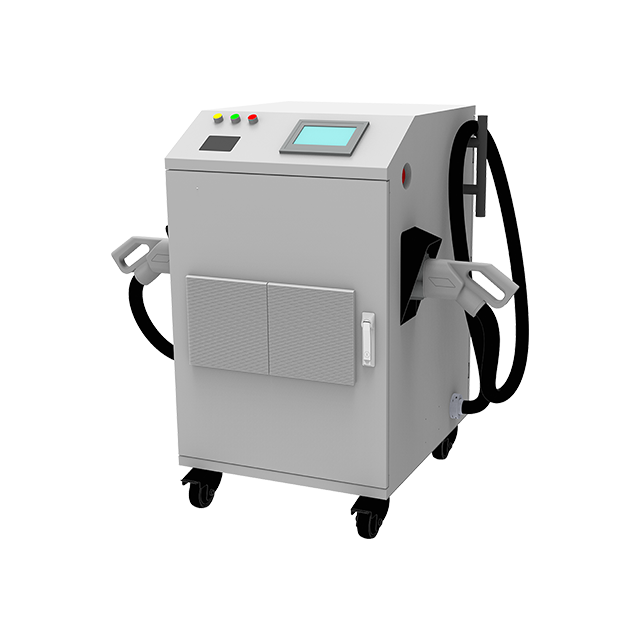

G45
Product Advantages
Portable and movable
Average efficiency ≥96% at nominal output power
Ethernet/3G/4G/OCPP communication
High protection grade as IP54
APP operation or RFID authentication or plug and play
CE certificate NB 1282
OEM/ODM
LOGO customize
| Model | THGZQW-20/30/40kW |
|---|---|
| Phases/Lines | 3 phases+neutral+PE |
| Voltage | 380VAC±20% |
| Frequency | 50Hz±10% |
| Power | 20 30 40 |
| Volatge | 200-1000VDC |
| Current (max.) | CCS 2 200A,CHAdeMO 125A,GB/T 250A |
| Cable Lenth | 5m |
| Connector | CCS 2 or CHAdeMO or GB/T,Up to 2 charging guns |
| Power Factor | ≥0.99 |
| THD Value | ≤5% |
| Stable Voltage Accuracy | ≤±0.5% |
| Stable Current Accuracy | ≤±1% |
| Efficiency | ≥96% at nominal output power |
| Housing Material | Galvanized steel |
| Installation Method | Portable |
| LED Indicator | 7 inches |
| Emergency Stop Button | Mushroom headed type |
| Payment Method | RFID CARD |
| External | Ethernet, and 3G/4G |
| Communication Protocal | OCPP1.6J |
| Working Temperature | -30ºC-+55ºC |
| Working Altitude | ≤2000M |
| Application Site | Indoor/Outdoor |
| Cooling Method | Forced air cool |
| Multiple Protection | Over Current, Under Current, Over Voltage, Residual Current, Surge Protection, Short Circuit, Earth Fault at input and output, Input Phase reversal, Emergency Shut-down with alarm, over temperature, Protection against electric shock. |
| Warranty | 1 year |
| Product Dimension | 650*750*1000mm(W*D*H) |
| Net Weight | 60/80KG |
| External Packing | Wooden case |
