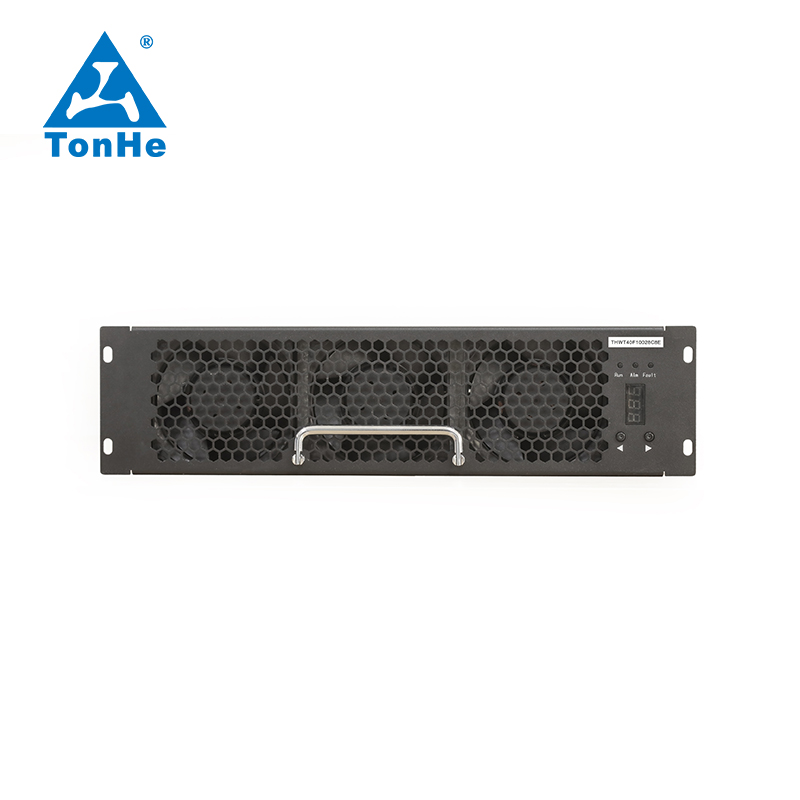

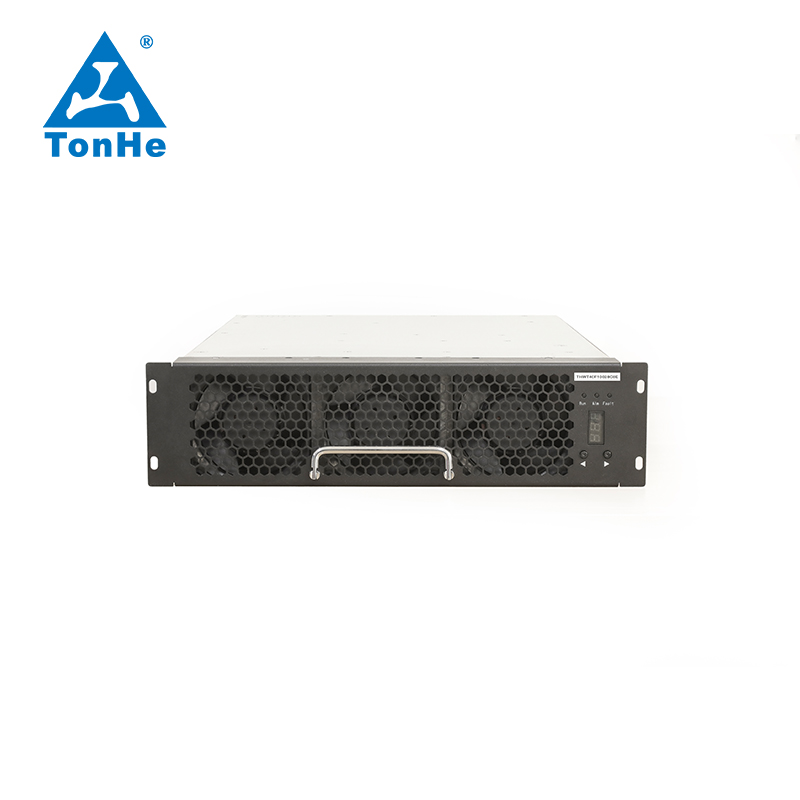

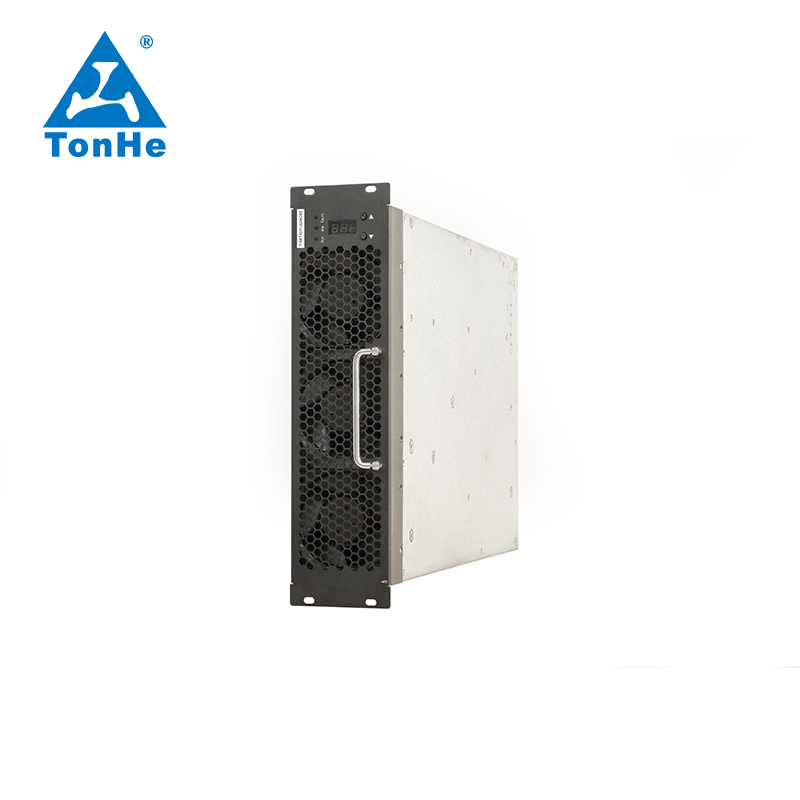

40kW CE Certificate EV Charger Module For DC Fast Charger

THWT40F10028C8E is a high-efficiency, high-power density AC/DC CE compliant module developed by Tonhe Company specifically for charging piles. This product is a three-phase four wire system (three-phase+PE) input, supporting 280VAC~480VAC voltage input, with a maximum power of 40KW and a default output constant power range of 280-1000VDC. The charging module communicates with the main monitoring system through the CAN bus to set the charging module parameters, collect the operating parameters of the charging module, and control the working status of the charging module.



Availability:
Quantity:
  • THWT40F10028C8E

  • Tonhe

Product Introduction


THWT40F10028C8E is a high-efficiency, high-power density AC/DC CE compliant module developed by Tonhe Company specifically for charging piles. This product is a three-phase four wire system (three-phase+PE) input, supporting 280VAC~480VAC voltage input, with a maximum power of 40KW and a default output constant power range of 280-1000VDC. The charging module communicates with the main monitoring system through the CAN bus to set the charging module parameters, collect the operating parameters of the charging module, and control the working status of the charging module.


Product Advantages


Wide output constant power range: 300-1000VDC

Ultra-low standby power consumption: <13W

Ultra-low total harmonic distortion: ≤5%

Ultra-wide operating temperature: -40℃~+75℃

High Conversion Efficiency: peak efficiency ≥ 96%


Parametric Performance

40FC8E输出电压

    40FC8E电压输入

40FC8E工作温度

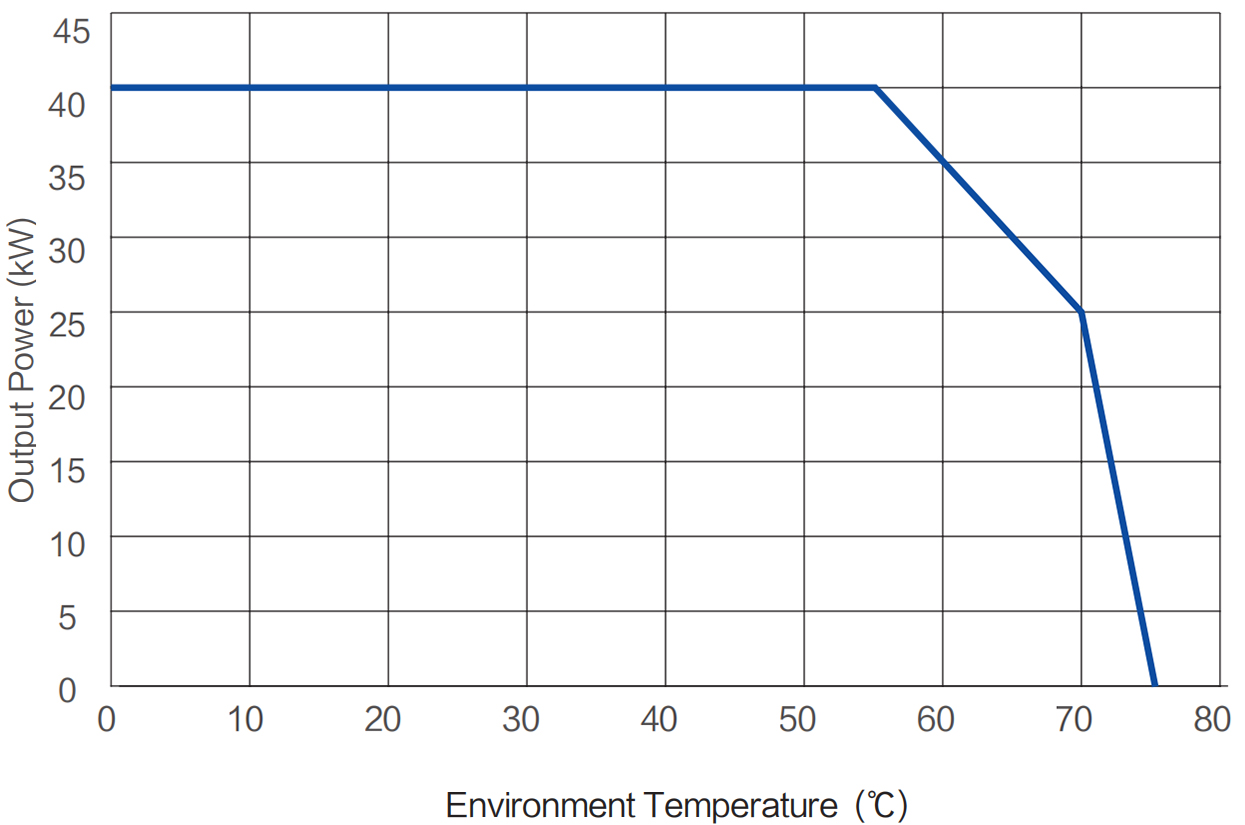

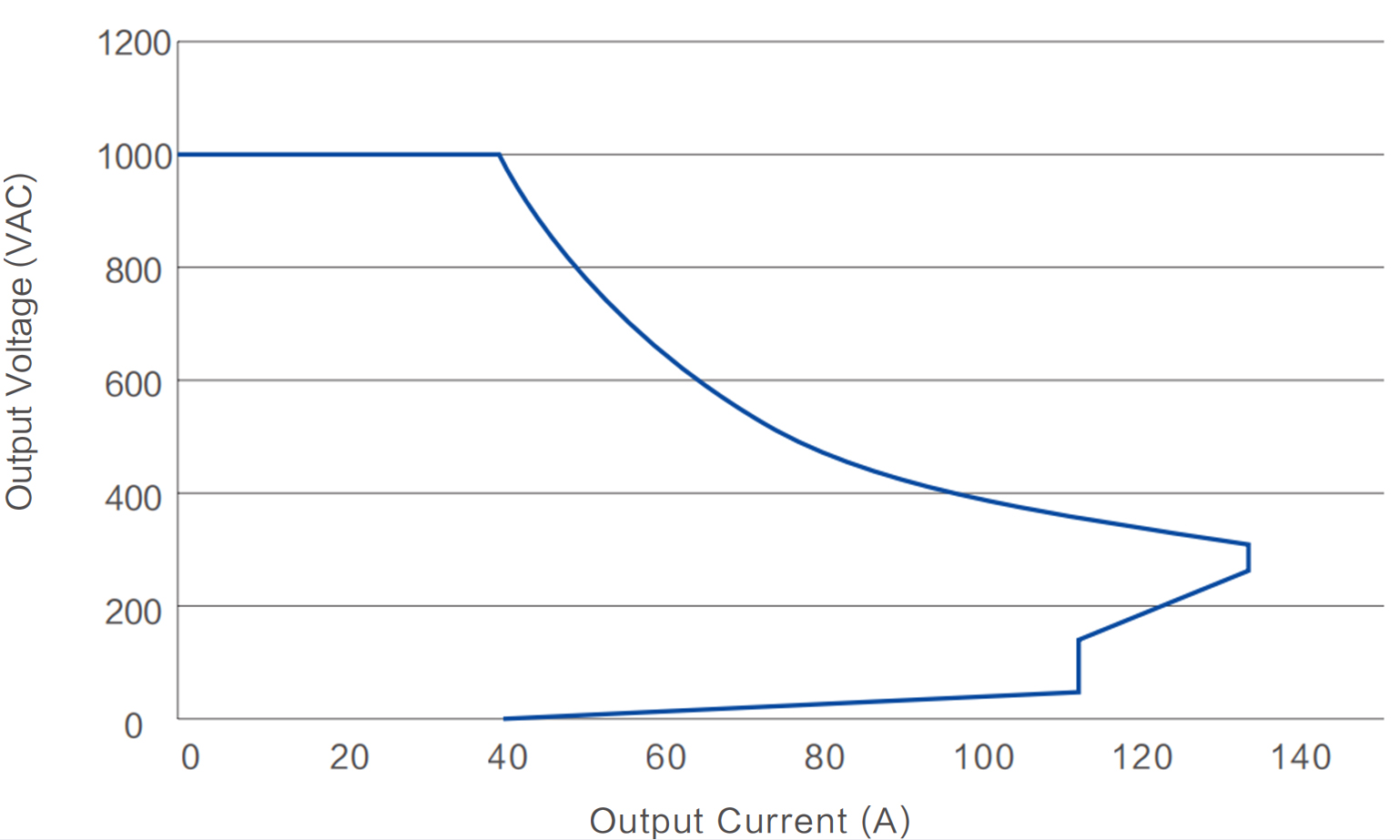

Output Characteristics Curve Input Power Limit Curve Ambient Temperature Power Limit Curve


Model No.

THWT40F10028C8E

AC input

Input voltage

Rated voltage 380VAC, three phase no center line,operating range 285-475VAC

Input frequency

50/60±5Hz

Input power factor

≥0.99

Input overvoltage protection

490±10VAC

Input undervoltage protection

270±10VAC

DC output

Rated output power

40kW

Output voltage range

50~1000VDC

Output current range

0.5~134A

Output constant power range

When output voltage is 300-1000VDC, constant 40kW will output.

Peak efficiency

≥96%

Soft start time

3-8S

Short circuit protection

Self-rollback protection

Voltage regulation accuracy

≤±0.5

THD

≤5%

Current regulation accuracy

≤±1%

Current sharing imbalance

≤±5%

Operating environment

Working temperature

-40℃- +75℃

Relative humidity

≤95% no condensation

Altitude

≤2000m, derating above 2000m

Product Features

Cooling method

Fan cooling

Standby power consumption

<13W

Communication Protocol

CAN

Address setting

Digital screen display, keys operation

Module dimension (without handle)

437.5*300*84mm(L*W*H)

Weight

≤20kg

MTBF

500000 hours
