| Techdata Sheet
INPUT AC
Input voltage: | Norminal voltage 380VAC; working range 285-475VAC |
power factor: | ≥0.99 |
Input overvoltage protection: | 476-506VAC |
Input undervoltage protection: | 254-284VAC |
Output rating: | 20kW |
Output voltage range: | 50~1000VDC |
Output current range: | 2~67A |
Output constant power range: | 300~1000VDC |
INPUT DC
Input voltage: | 300~810VDC |
Rated input: | 750VDC |
Rated output power: | 20kW |
Output voltage range: | 50~1000VDC |
Output current rang: | 2~67A |
Output constant power range: | 300~500;600~1000VDC(At rated DC input) |
Size: | 460mm*218mm*84mm |
| Automated production
| Automated Production
| FAQ
1.What are module CAN baud rate and CAN voltage level?
-125Kbs 5V
2. Do the modules support glue filling?
-All series modules can support glue filling.
3. What are the requirements for the installation method of the charging module?
-The charging module can be installed horizontally, side standing or upside down. If upside down installation is used, please contact our company to customize the front panel without a handle.

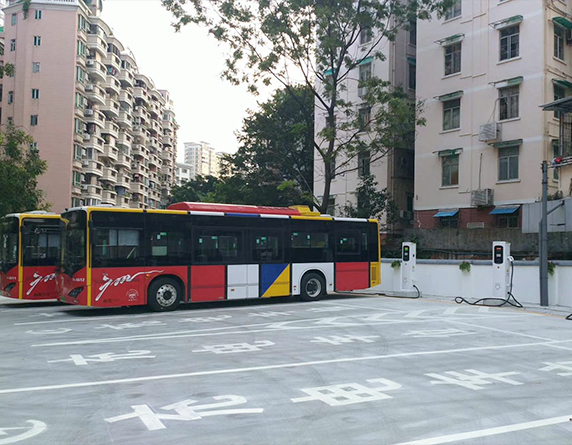

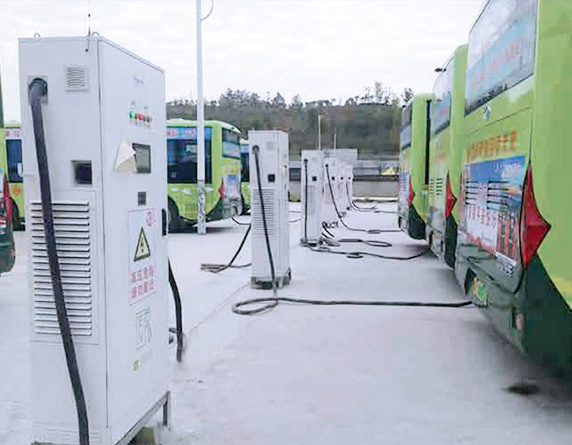

| Success Case
