60–160kW High Power Commercial EV Integrated DC Fast Charger
G52
G52 is an integrated DC charger designed for high-power EV charging applications, covering a power range of 60–160 kW. With a 200–1000 VDC output range, support for CCS1, CCS2 and GB/T charging standards, and single-gun or dual-gun configurations, G52 provides a flexible charging solution for public and commercial charging environments.
Get a quote
Share
High-Power DC Charging for Highway and Urban Charging Stations
G52 integrates DC charging functions into a single charging cabinet for public and commercial EV charging applications. The system supports a 60–160 kW power range and provides DC output from 200 V to 1000 V.
With support for CCS1, CCS2 and GB/T charging standards, G52 can be configured for different charging markets. The charger also supports single-gun full-power charging and dual-gun equal power sharing, allowing operators to select a suitable charging configuration for different station requirements.
With support for CCS1, CCS2 and GB/T charging standards, G52 can be configured for different charging markets. The charger also supports single-gun full-power charging and dual-gun equal power sharing, allowing operators to select a suitable charging configuration for different station requirements.

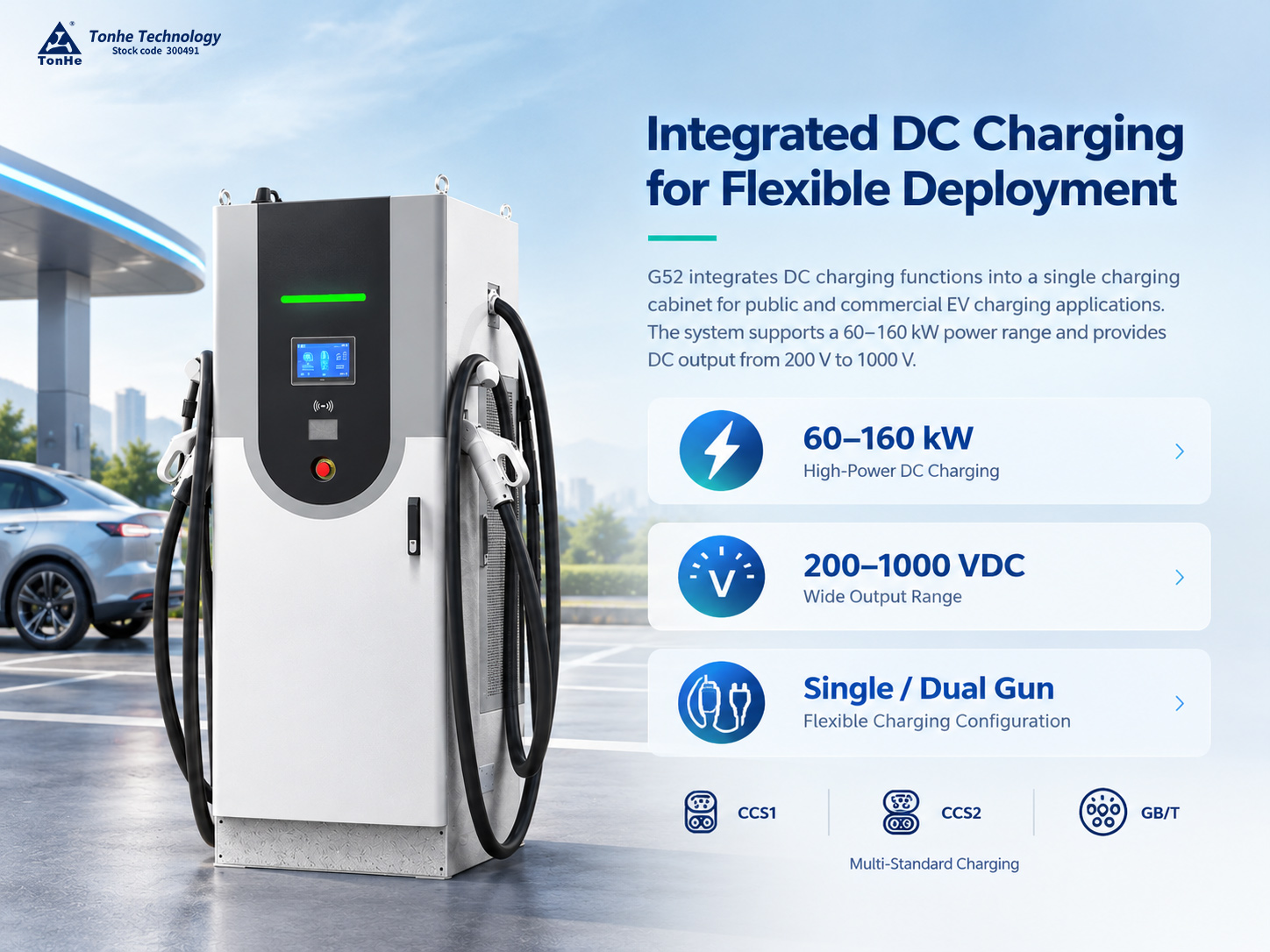

Integrated DC Charging for Flexible Deployment
G52 combines the main functions required for high-power DC charging in an integrated charging cabinet. It covers a power range of 60–160 kW and supports DC output from 200 V to 1000 V.
Designed for public charging environments, G52 supports multiple charging standards and flexible charging configurations. A single charging gun can use the available charging power, while dual-gun operation distributes power equally between the two outputs.
With OCPP 1.6 communication, upgrade capability to OCPP 2.0.1 and remote firmware upgrade support, G52 can also be integrated into connected charging infrastructure.

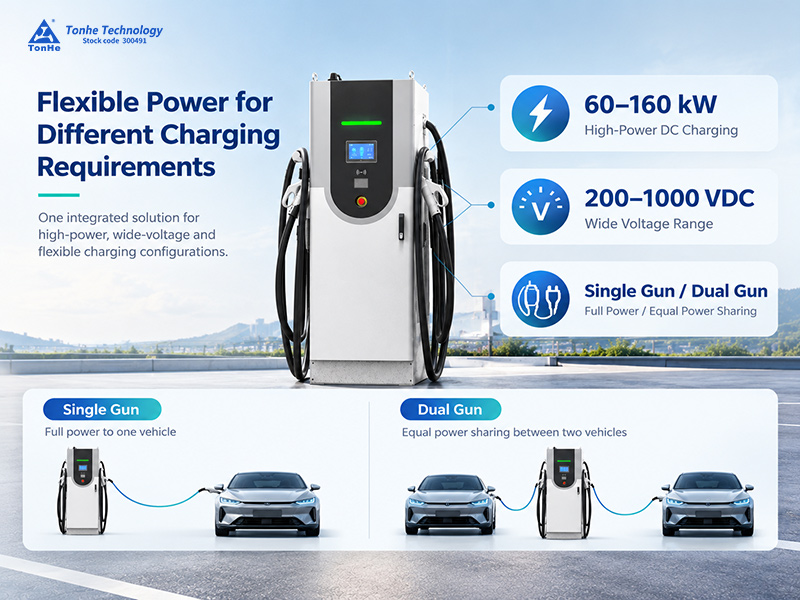

Flexible Power for Different Charging Requirements
G52 provides a 60–160 kW DC charging power range with an output voltage range of 200–1000 VDC.
The wide output voltage range allows the charger to accommodate different EV charging voltage requirements. The charging system also supports single-gun and dual-gun operation.
For single-gun charging, the available power can be delivered to one vehicle. When two guns are used simultaneously, the available power is equally shared between the two charging outputs.
This configuration allows G52 to serve both single-vehicle high-power charging and simultaneous charging scenarios within one integrated cabinet.
The wide output voltage range allows the charger to accommodate different EV charging voltage requirements. The charging system also supports single-gun and dual-gun operation.
For single-gun charging, the available power can be delivered to one vehicle. When two guns are used simultaneously, the available power is equally shared between the two charging outputs.
This configuration allows G52 to serve both single-vehicle high-power charging and simultaneous charging scenarios within one integrated cabinet.

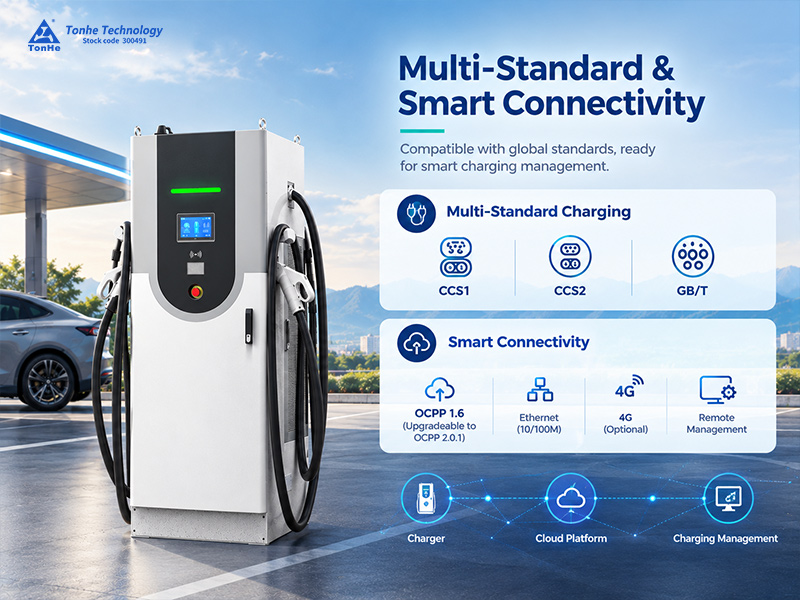

Multi-Standard Charging with Smart Connectivity
G52 supports CCS1, CCS2 and GB/T charging standards, allowing the charger to be configured for different regional charging requirements.
For charging station connectivity, G52 is OCPP 1.6 compliant and can be upgraded to OCPP 2.0.1. Remote firmware upgrade capability further supports connected charging operation and remote maintenance.
This combination of charging-standard compatibility and communication capability makes G52 suitable for integration into modern charging station networks.
For charging station connectivity, G52 is OCPP 1.6 compliant and can be upgraded to OCPP 2.0.1. Remote firmware upgrade capability further supports connected charging operation and remote maintenance.
This combination of charging-standard compatibility and communication capability makes G52 suitable for integration into modern charging station networks.
Designed for Reliable Outdoor Charging
G52 is designed for outdoor charging station environments, with an IP54 protection rating and an operating temperature range of -25°C to +50°C.
The charger uses an air-cooling system and is specified for installation environments up to 2000 meters above sea level.
Multiple protection functions are integrated into the charging system, including short-circuit, over-temperature, over-current, under-voltage, over-voltage, emergency stop and surge protection.
Together, these functions provide the protection features required for routine operation of the integrated DC charging system.
The charger uses an air-cooling system and is specified for installation environments up to 2000 meters above sea level.
Multiple protection functions are integrated into the charging system, including short-circuit, over-temperature, over-current, under-voltage, over-voltage, emergency stop and surge protection.
Together, these functions provide the protection features required for routine operation of the integrated DC charging system.
Built for Highway and Urban Charging

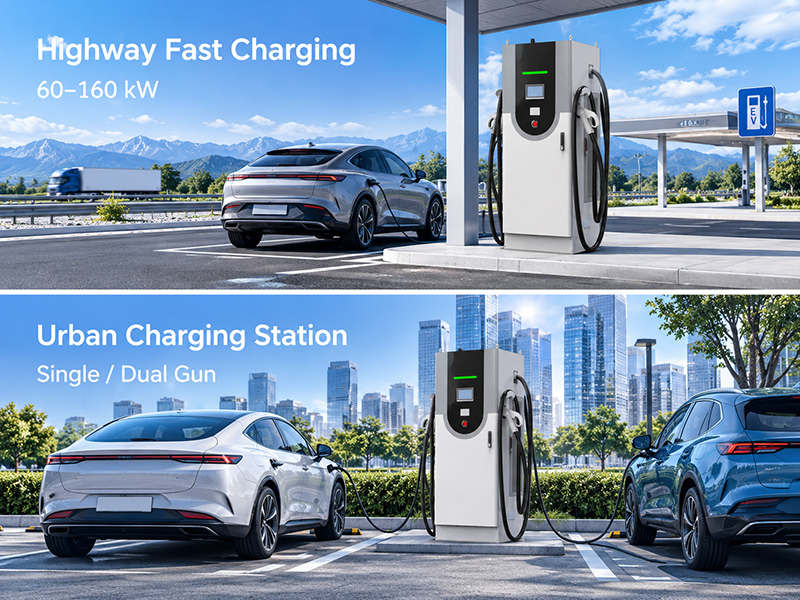

G52 is specified for highway fast charging and urban station operation.
For highway charging stations, the 60–160 kW power range and 200–1000 VDC output provide a high-power DC charging configuration for EV charging infrastructure.
For urban charging stations, the integrated cabinet design and flexible single-gun or dual-gun operation allow the charger to support different station layouts and charging requirements.
The multi-standard configuration with CCS1, CCS2 and GB/T further allows G52 to be adapted to different regional charging markets.
For highway charging stations, the 60–160 kW power range and 200–1000 VDC output provide a high-power DC charging configuration for EV charging infrastructure.
For urban charging stations, the integrated cabinet design and flexible single-gun or dual-gun operation allow the charger to support different station layouts and charging requirements.
The multi-standard configuration with CCS1, CCS2 and GB/T further allows G52 to be adapted to different regional charging markets.
G52 Technical Specification
G52 is available with a defined electrical, mechanical and communication configuration for integrated DC charging applications. The following specifications provide the key technical information required for system selection, installation planning and project evaluation.
| Specification | G52 |
|---|---|
| Product Type | Integrated DC Charger |
| Power Range | 60–160 kW |
| Output Voltage | 200–1000 VDC |
| AC Input | 3 Phase + N + PE |
| Input Voltage | 400 Vac ±15% |
| Optional Input | 480 Vac ±10% |
| Input Frequency | 50/60 Hz ±10% |
| Power Distribution | Single Gun: Full Power / Dual Gun: Equal Power Sharing |
| Cooling | Air Cooling |
| IP Rating | IP54 |
| Operating Temperature | -25°C to +50°C |
| Altitude | ≤2000 m |
| Display | 7"/ 10.1" |
| Cable Length | Approx. 5 m |
| GB/T Output Current | 0–250 A |
| CCS2 Output Current | 0–200 A |
| CCS1 Output Current | 0–200 A |
| Peak Efficiency | ≥95% |
| Power Factor | ≥0.99 |
| Communication | OCPP 1.6 |
| OCPP Upgrade | OCPP 2.0.1 |
| Dimensions | 700 × 611.6 × 1850 mm |
| Net Weight | Approx. 240 kg, modules excluded |
Frequently Asked Questions for G52 All-in-One DC Charger
1. What is the power range of the G52 Integrated DC Charger?
The G52 Integrated DC Charger covers a power range of 60–160 kW, making it suitable for high-power DC charging applications such as highway fast charging and urban charging stations.
2. What is the output voltage range of the G52 DC Fast Charger?
The G52 provides a wide 200–1000 VDC output voltage range, supporting different EV charging voltage requirements within its specified operating range.
3. Does the G52 support single-gun and dual-gun charging?
Yes. The G52 supports both single-gun and dual-gun charging configurations. In single-gun operation, the available charging power can be delivered through one gun. In dual-gun operation, the available power is equally shared between the two guns.
4. Which charging standards does the G52 support?
The G52 supports CCS1, CCS2 and GB/T charging standards. This allows the charger to be configured for different regional EV charging requirements.
5. What is the maximum output current of the G52?
According to the specified configuration, the G52 supports output currents of up to 250 A for GB/T, while CCS2 and CCS1 configurations support up to 200 A.
6. Does the G52 support OCPP?
Yes. The G52 is OCPP 1.6 compliant and can be upgraded to OCPP 2.0.1. This provides a communication option for integration with compatible charging management systems.
7. Does the G52 support remote firmware upgrades?
Yes. The G52 is equipped with a remote firmware upgrade function, supporting remote firmware management for connected charging systems.
8. Is the G52 suitable for outdoor EV charging stations?
The G52 is designed for charging station applications including highway fast charging and urban station operation. It has an IP54 protection rating and an operating temperature range of -25°C to +50°C. The specified installation altitude is up to 2000 meters.
9. What cooling method does the G52 Integrated DC Charger use?
The G52 uses air cooling. The charger has a peak efficiency of ≥95% and a power factor of ≥0.99, according to the product specifications.
10. What protection functions are included in the G52 DC Charger?
The G52 includes multiple protection functions, including short-circuit protection, over-temperature protection, over-current protection, under-voltage protection, over-voltage protection, emergency stop and surge protection.
