TH40F10030C7-WT
Tonhe

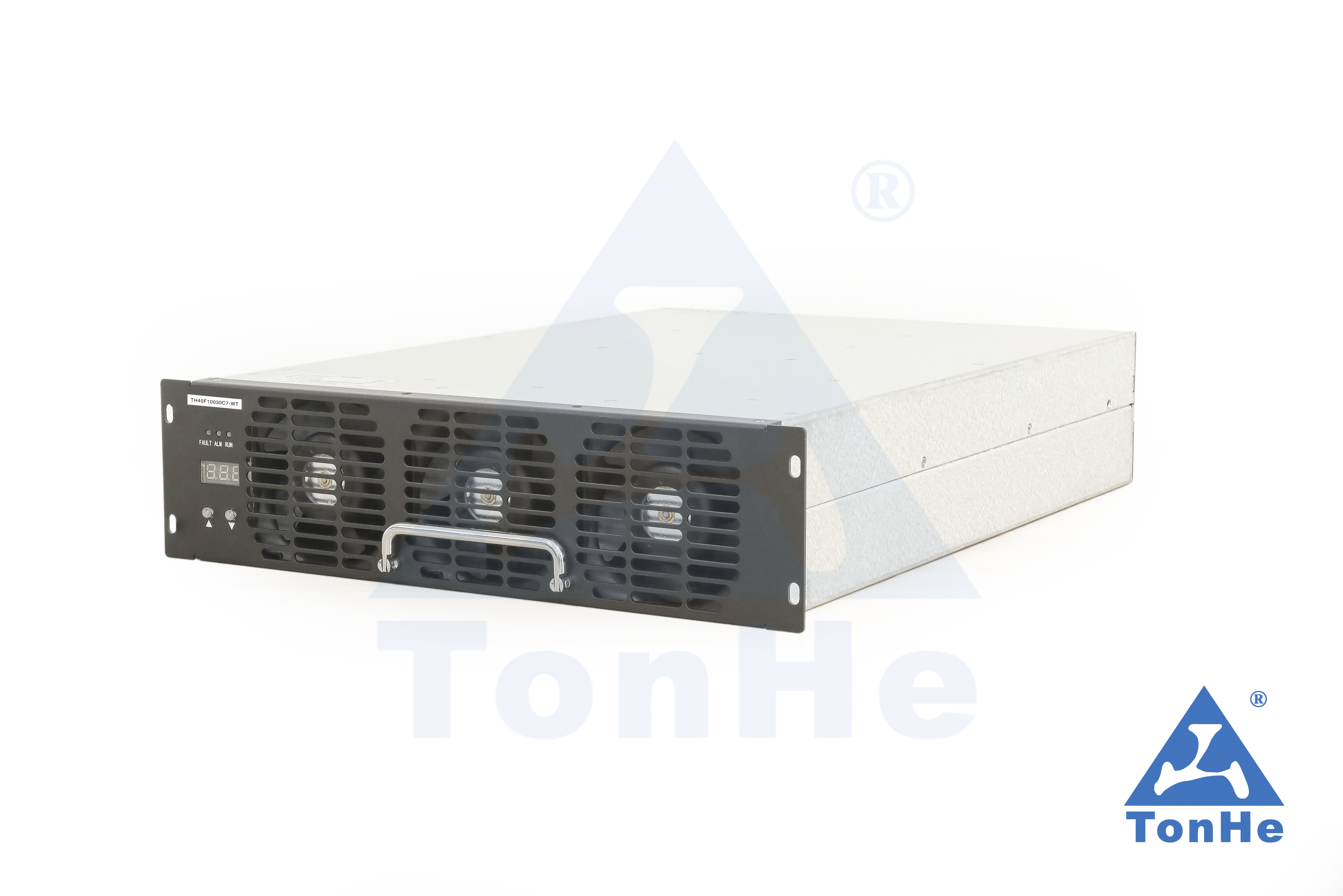

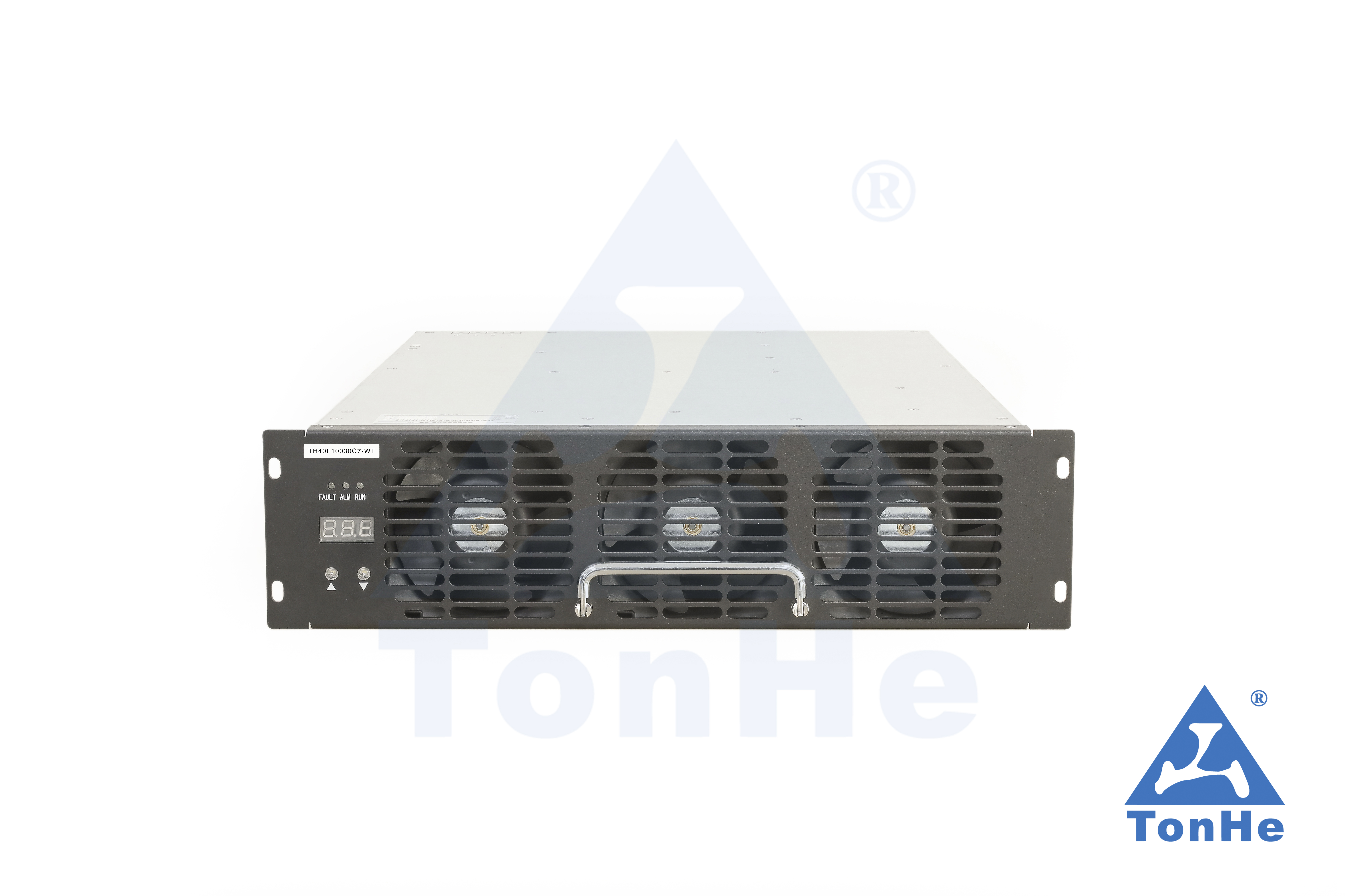

TH40F10030C7-WT is a high-efficiency, high-power-density DC charging module developed by Tonhe Technology for EV DC chargers. It can output up to 1000V, and provides a constant power of 40kW within the ranges of 300-500VDC and 600-1000VDC. The interface and size of this module are the same as our 30kW model, making it convenient for users to upgrade and iterate. The module adopts intelligent air cooling and heat dissipation mode, and supports normal mode and silent mode. The charging module CAN realize the parameter setting of the charging module and control the working state of the charging module through CAN bus and main monitoring communication.
Wide output constant power range: 300-500VDC and 600-1000VDC
Ultra-low standby power consumption: <10W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -40℃-75℃
High Conversion Efficiency: peak efficiency ≥ 96%
|
|
|
| Output Characteristics Curve | Input Power Limit Curve | Ambient Temperature Power Limit Curve |
Model No | TH40F10030C7-WT | |
AC Input | Input Voltage | Rated voltage 380VAC, three phase no center line，operating range 270-490VAC |
Input frequency | 50/60Hz±10% | |
Input power factor | ≥0.99 | |
Input overvoltage protection | 490±10VAC | |
Input undervoltage protection | 270±10VAC | |
DC output | Rated output power | 40kW |
Output voltage range | 50~1000VDC | |
Output current range | 0.5~134A | |
Output constant power range | When output voltage is 300-500VDC and 600-1000VDC, constant 40kW will output. | |
Peak efficiency | ≥96% | |
Soft start time | 3~8s | |
Short circuit protection | Self-rollback protection | |
Voltage regulation accuracy | ≤±0.5% | |
THD | ≤5% | |
Current regulation accuracy | ≤±1% | |
Current sharing imbalance | ≤±5% | |
Operating environment | Working temperature | -40℃~+75℃ |
Relative humidity | ≤95% no condensation | |
Altitude | ≤2000m, derating above 2000m | |
Product Features | Cooling method | Fan cooling |
Standby power consumption | ＜10W | |
Communication Protocol | CAN | |
Address setting | Digital screen display, keys operation | |
Module dimension (without handle) | 437.5*300*84mm(L*W*H) | |
Weight | ≤16kg | |
MTBF | 500000 hours | |
