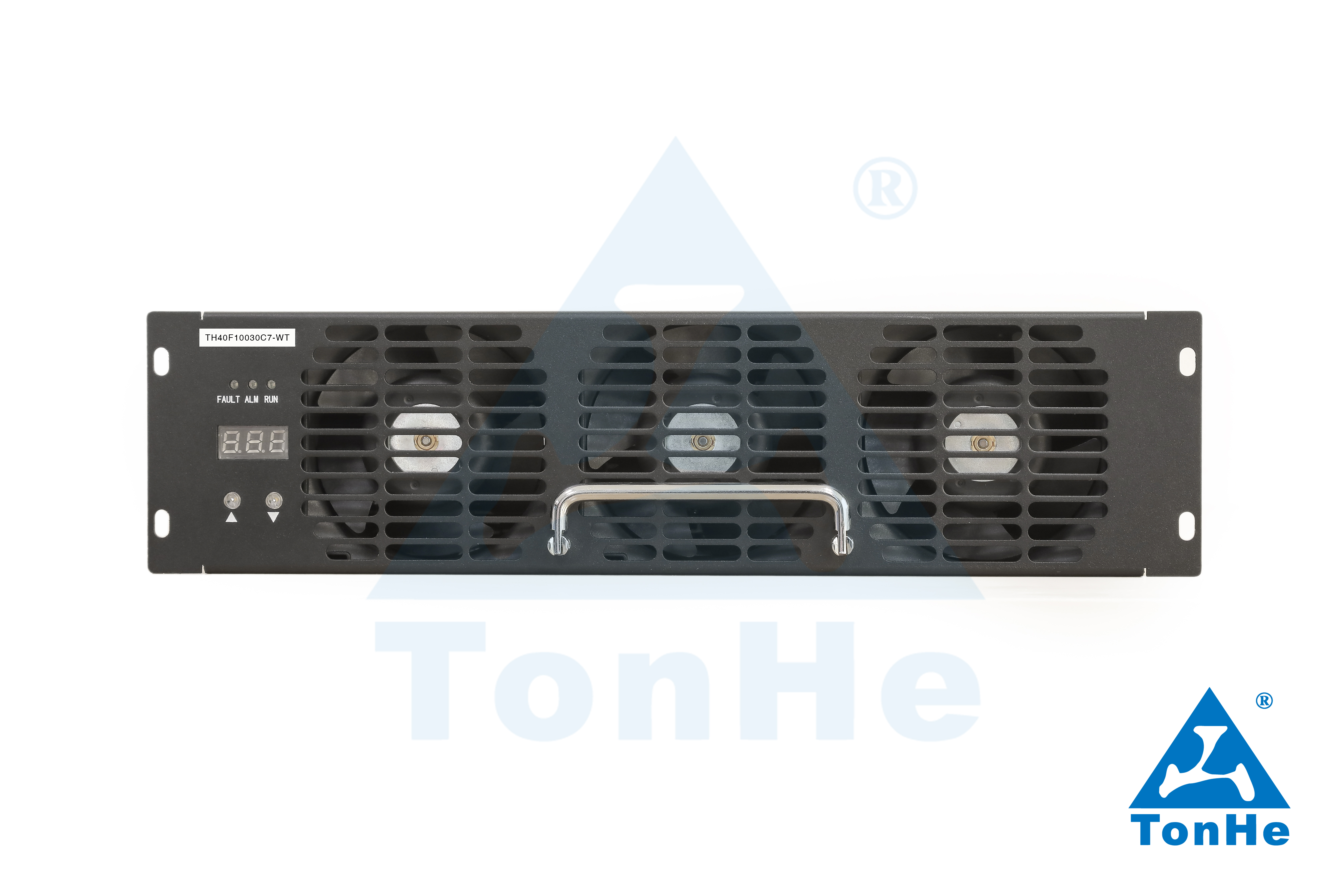

TH40F10030C7-WT (40KW)

Tonhe Charging Module:

*high reliability (8th Generation of the series)

*wide output voltage range (50-1000VDC)

*high efficiency (peak efficiency 96% and above)

*high power density (input power factor 99% and above)

*wide constant power range (output power 40kw with output 300-500,600-1000)

*low standby power consumption (13w and below)



Availability:
Quantity:
  • TH40F10030C7-WT
  • Tonhe

Basic Infomation

Model NO.:TH40F10030C7

Can Bus Protocal: Can

Cooling Method:  Fan Cooling

Peak Efficiency: ≥96%

EMC: Class B

Specification: 437.5*300*84mm(L*W*H)

IP degree: IP20

Transport Package: Wooden Box

Application: DC Fast Charging Station

Trademark: TONHE

Origin: China

H S Code: 8504401990

Model No

TH40F10030C7


AC input

Input voltage

Rated voltage 380VAC, three phase no center line,operating range 285-475VAC

Input frequency

50±5Hz

Input power factor

≥0.99

Input overvoltage protection

490±10VAC

Input undervoltage protection

270±10VAC

DC output

Rated output power

40kW

Output voltage range

50~1000VDC

Output current range

0.5~134A

Output constant power range

When output voltage is 300-500VDC and 600-1000VDC, constant 40kW will output.

Peak efficiency

≥96%

Soft start time

3-8S

Short circuit protection

Self-rollback protection

Voltage regulation accuracy

≤±0.5

THD

≤5%

Current regulation accuracy

≤±1%

Current sharing imbalance

≤±5%

Operating environment

Working temperature

-40℃- +75℃

Relative humidity

≤95% no condensation

Altitude

≤2000m, derating above 2000m

Product Features

Cooling method

Fan cooling

Standby power consumption

<13W

Communication Protocol

CAN

Address setting

Digital screen display, keys operation

Module dimension (without handle)

437.5*300*84mm(L*W*H)

Weight

≤20kg

MTBF

500000 hours
