Why Is a Charging Module Used?

Views: 52     Author: Site Editor     Publish Time: 2023-05-19      Origin: Site


facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

As electric vehicles (EVs) continue to grow in popularity, charging infrastructure becomes increasingly important. EV charging stations are crucial for people who prefer using their electric cars on long-distance trips or daily commutes. However, an essential component of any EV charging station is the charging module. This article aims to provide a comprehensive overview of what charging modules are, how they work, and why they're beneficial for EV charging stations.

What is a Charging Module?

A charging module is an electronic device that manages the flow of electricity from the grid to an electric vehicle's battery pack. It regulates the power output and provides safety features such as thermal overload protection, short circuit prevention, and overvoltage protection. A charging module is typically integrated into an EV charging station or installed as a separate unit to support different types of charging configurations.

There are two types of charging modules: AC and DC. AC charging modules convert the alternating current from the grid to direct current suitable for battery charging. They are commonly used in low-power chargers for home use or public AC charging stations. On the other hand, DC charging modules convert direct current from the grid to high-voltage DC current appropriate for fast charging. They are usually found in high-power chargers along highways or commercial DC fast charging stations.

How Does a Charging Module Work?

The charging module works by taking in AC power from the grid and converting it to DC power using a rectifier. The DC power is then regulated and smoothed out using capacitors and other electronic components. This regulated DC power is then supplied to the electric vehicle's onboard charger, which further converts it to the voltage and current required to charge the battery.

In addition to converting AC to DC power, the charging module also provides various safety features to protect the EV and the charging equipment. For instance, the charging module monitors the voltage and current levels and ensures that they remain within safe limits. It can also detect faults such as short circuits or overcurrent conditions and immediately shut down the charging process to prevent any damage.

For example, let's say you have a Tonhe EV charging module (TH20F10025C7-WT)rated at 20 KW. If you plug in an EV with a 30 kW battery, the charging module will limit the charging rate to 20 KW to prevent overloading and overheating the battery. Similarly, if the EV's battery is running low on charge, the charging module will increase the output to provide faster charging until it's fully charged.

Sustainable charging solutions

What Are the Benefits of Using a Charging Module?

There are several benefits of using a charging module in EV charging applications:

Efficient Charging: The charging module ensures that the EV battery receives the correct amount of power at the right voltage and current levels. This results in faster and more efficient charging, reducing the overall charging time.

Safety: The charging module provides various safety features, such as overcurrent protection and short circuit detection. This ensures that both the EV and the charging equipment are protected from any damage.

Cost-Effective: Using a charging module can be cost-effective compared to building a custom charging solution from scratch. Charging modules are available in various capacities, and one can choose the one that meets their requirements.

Easy Installation: Charging modules are designed for easy installation and can be integrated into existing charging stations or used to build new ones.

Are there any drawbacks to using a charging module?

One potential drawback to using a charging module is cost. These modules can be expensive, particularly if you require a high-powered module for a commercial charging station. However, the benefits of using a charging module generally outweigh the costs, as they ensure a safe and efficient charging experience for electric vehicle owners.

Another drawback is that charging modules require regular maintenance, which can add to their overall cost. However, proper maintenance can extend the lifespan of the module, making it a worthwhile investment in the long run.

How do I choose the right charging module for my needs?

Choosing the right charging module for your needs depends on several factors, including the charging speed required, the type of charging pile you are using, and the overall power requirements of your charging station.

If you are building a commercial charging station, you may require a higher-powered module, such as a 30kw charging module, to accommodate multiple electric vehicles simultaneously. However, for personal use, a 20kw charging module may be sufficient.

It is also essential to consider the compatibility of the charging module with your existing charging pile or the one you plan to install. Tonhe EV charging modules are compatible with various charging pile types, while other modules may only work with specific models.

In conclusion, charging modules are an essential component in modern electronics, providing a reliable and efficient way to manage power delivery to batteries. As a leading provider of electronic components and solutions, Tonhe Technology offers a wide range of high-quality charging modules for various applications. With our commitment to innovation and customer satisfaction, we strive to help our clients achieve optimal performance and reliability in their products. Visit our website at to learn more about our products and services.

Why choose Tonhe Charging Modules?

Electric vehicle charging solutions

Founded in 1998, Tonhe charging module has evolved 8 generations. Characterized with wide constant output power (from 50 to 1000 voltage), ultra-wide operating temperature range (from -45 to 70 ℃)and ultra-high peak efficiency (up to 96%),Tonhe charging modules are widely used from north to south, from high-salt, high- pressure to erosive environment. Qualified with CE/UL certification, Tonhe modules are being supplied to more than 30 countries globally.

What Charging Modules type does Tonhe Provide?

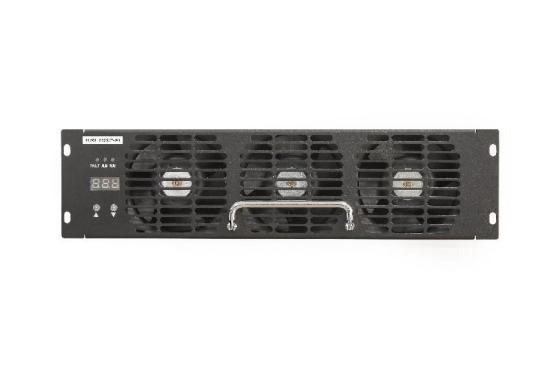

EV Charging Module installationEV Charging Module cost

Tonhe focus on 20Kw EV Charging Module, 30Kw EV Charging Module and 40Kw EV Charging Module. Model type: TH20F10025C7-WT, TH30F10025C7-WT, TH30F10030C8-WT, TH40F10030C7-WT, TH40F10028C8E-WT etc.
